Plastic cup making machine
Plastic cup making machine
  • Product introduction
  • Technical parameters
  • Product features
  • Sample photos

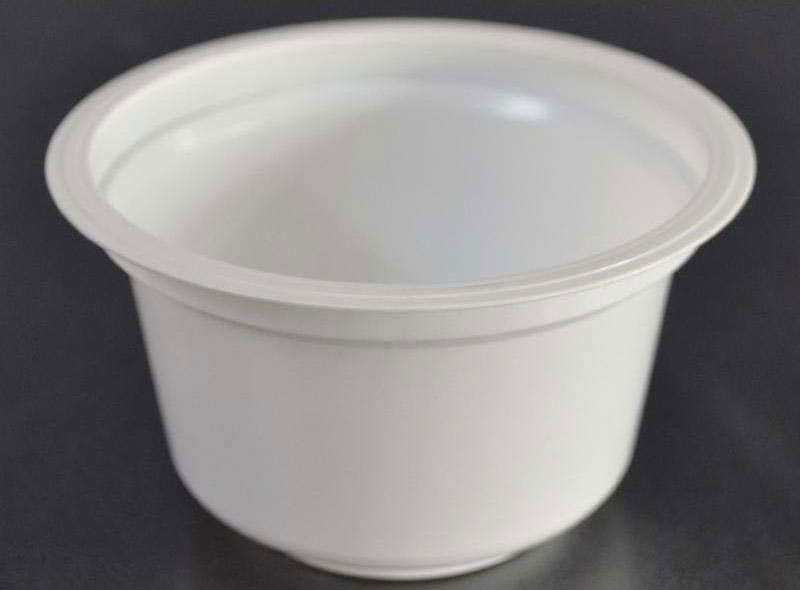

That machine mainly used for making different of plastic products such as water drinking cups, jelly cups, yogurt cups,coffee cups, and also making disposable bowls, lids, plates,trays etc.
Model GCF-750/350
Sheet Material PP/PE/HIPS /PET/PVC(Hard Sheet )
Sheet Thickness 0.3-2.0mm
Sheet Width 500-720mm
Max Install Area 750×350mm
Max Shaping Depth 170mm(can be customized)
Max Forming Depth 130mm (can be customized)
Productivity 10-35strokes/min
10-35
Total Power 100Kw
Main Motor Power 11kw
Power Supply 380V/50Hz  3Phases,4Wires
Forming Pressure 0.6-0.8Mpa
Water Volume Required 40~45L/min
Machine Weight About 5.5T
Dimension ( L*W*H) About 4500*1800*2400mm

1.Machine operation is controlled by PLC Touch screen
2.Adopt four pillars to fix mold, ensure whole machine precision
3.Temperature control modules to control each temperature area
4.Convenient operation, outstanding performance,low noise and high quality.
